Omnifab Engineers Pvt. Ltd. |
|
* Design conforming to IS / ASME and TEMA standards
* Upto 250 m2 heat exchange area
* Single / multiple pass type
* Baffle arrangement in shell to ensure turbulence in flow for effective heat exchange
* Tube bundle assembly adequately supported for reduced vibration.
* Shell in CS, CS-BQ, SS 304 & SS 316 material and tubes in Copper, CS, SS 304 & SS 316 material.
* Tube sizes from 10 mm OD to 50 mm OD with suitable thickness as per the process requirement
* Vertical / horizontal mounting |
|

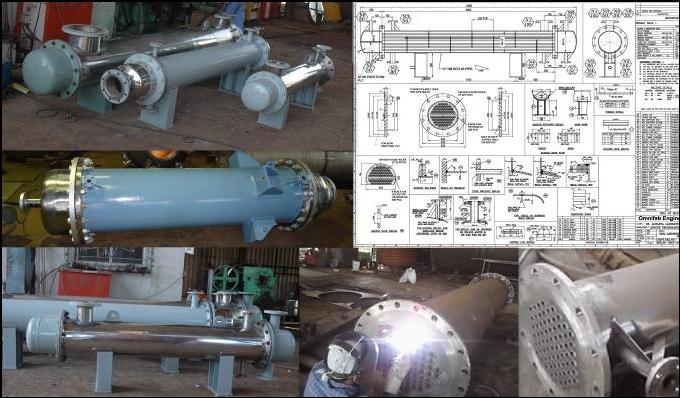

SHELL & TUBE HEAT EXCHANGERS |
